Turning the Tide: A Comprehensive Guide to Screw Extractors


Screws are ubiquitous in construction, manufacturing, and repair work, but they can become a significant obstacle when damaged or stripped. Fortunately, screw extractors provide an effective solution, enabling the removal of stuck screws with minimal hassle. This article delves into the world of screw extractors, exploring their types, uses, techniques, and practical tips for effective application.

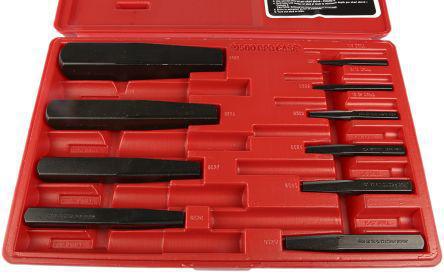

What Is a Screw Extractor?

A Screw Extractor is a specialized tool designed to remove screws that have been stripped, rusted, or otherwise rendered difficult to unscrew. These tools are essential in scenarios where conventional methods, such as using a screwdriver or pliers, fail. Screw extractors utilize reverse-threaded designs or gripping mechanisms to latch onto the damaged screw and remove it.

Types of Screw Extractors

Screw extractors come in various designs tailored to different scenarios. Understanding their types can help you choose the right one for your specific needs:

1. Spiral Flute Screw Extractors

  • Design: These extractors feature a tapered, reverse-threaded spiral that bites into the screw as you turn it counterclockwise.

  • Applications: Ideal for softer materials or screws with a shallow embedment.

  • Advantages: Easy to use and suitable for most stripped screws.

  • Limitations: May not work effectively on extremely hard screws or those with severe corrosion.

2. Straight-Flute Screw Extractors

  • Design: Equipped with straight flutes, these tools are hammered into the screw to create a grip.

  • Applications: Suitable for screws embedded in harder materials or with heavy corrosion.

  • Advantages: Offers superior gripping force.

  • Limitations: Requires more effort and precision during application.

3. Double-Ended Extractors

  • Design: These versatile tools have a drill bit on one end to create a pilot hole and an extractor on the other for removal.

  • Applications: Commonly used for screws in woodworking and general repair work.

  • Advantages: Convenient all-in-one design.

  • Limitations: May not perform as well as dedicated extractors in challenging situations.

4. Gripping Screw Extractors

  • Design: Feature a gripping mechanism or jaws to securely hold and rotate the screw.

  • Applications: Best for large screws or bolts with substantial damage.

  • Advantages: High torque and strong grip.

  • Limitations: Bulky and less versatile than other extractors.

When to Use a Screw Extractor

Screw extractors are indispensable tools in scenarios where screws cannot be removed using standard methods. Common situations include:

1. Stripped Screws

The screwdriver head fails to engage with the screw due to worn or damaged grooves.

2. Rusted Screws

Oxidation causes screws to bind with surrounding materials, making them immovable.

3. Broken Screw Heads

The head snaps off during installation or removal, leaving the threaded body embedded.

4. Cross-Threaded Screws

Improper threading causes screws to become jammed, requiring specialized tools for extraction.

Tools Required for Using Screw Extractors

Before attempting to remove a damaged screw, ensure you have the following tools and materials:

  • Screw Extractor: Choose the appropriate type and size for the screw.

  • Drill: Used to create a pilot hole in the screw for the extractor to grip.

  • Hammer: For driving straight-flute extractors into place.

  • Wrench or T-handle: Provides leverage to turn the extractor.

  • Lubricant: Helps loosen rusted or corroded screws.

  • Safety Gear: Protective eyewear and gloves to ensure safety during the process.

Step-by-Step Guide to Using a Screw Extractor

Follow these steps to effectively remove a damaged screw using a screw extractor:

1. Assess the Damage

Examine the screw to determine the extent of damage and choose the appropriate extractor.

2. Prepare the Area

  • Clear away debris or rust around the screw.

  • Apply a penetrating lubricant to ease the removal process.

3. Drill a Pilot Hole

  • Use a drill bit slightly smaller than the extractor’s diameter.

  • Drill into the center of the screw head to create a hole for the extractor.

4. Insert the Screw Extractor

  • Place the extractor’s tip into the pilot hole.

  • For spiral and straight-flute extractors, tap gently with a hammer to secure the tool.

5. Remove the Screw

  • Attach a wrench or T-handle to the extractor.

  • Turn counterclockwise to unscrew the damaged screw.

  • Apply steady pressure to avoid breaking the extractor.

6. Clean the Area

  • Remove any remaining debris from the hole.

  • Inspect the extracted screw to identify potential issues for future installations.

Tips for Successful Screw Extraction

  1. Choose the Right Tool: Match the extractor size to the screw to avoid further damage.

  2. Work Slowly: Rushing can cause the extractor to break or strip the screw further.

  3. Use Quality Tools: High-quality extractors and drills improve success rates and durability.

  4. Apply Heat: For rusted screws, heating the area can expand the material and facilitate removal.

  5. Preventative Measures: Use anti-seize lubricants and proper tools during installation to minimize future problems.

Common Challenges and Solutions

Even with the right tools and techniques, screw extraction can present challenges. Here are common issues and their solutions:

1. Extractor Breakage

  • Cause: Excessive force or improper alignment.

  • Solution: Use steady pressure and ensure the pilot hole is deep enough.

2. Screw Won’t Budge

  • Cause: Severe rust or cross-threading.

  • Solution: Apply additional lubricant or heat the area to loosen the screw.

3. Pilot Hole Misalignment

  • Cause: Incorrect drilling angle.

  • Solution: Start with a smaller drill bit to guide the process and increase accuracy.

Preventing Damaged Screws

Avoiding screw damage can save time and effort in future projects. Here are some preventative tips:

  • Use Quality Screws: Opt for durable, rust-resistant screws for long-lasting performance.

  • Proper Tools: Match the screwdriver or drill bit size to the screw.

  • Avoid Over-Tightening: Excessive force can strip threads or damage the screw head.

  • Regular Maintenance: Inspect and replace worn tools to ensure optimal performance.

Applications of Screw Extractors

Screw extractors are essential tools across various fields:

1. Automotive Repairs

  • Removing rusted or seized bolts in engines and machinery.

2. Woodworking

  • Extracting damaged screws without harming the surrounding material.

3. Home Improvement

  • Fixing issues in furniture, appliances, and fixtures.

4. Industrial Maintenance

  • Handling large-scale machinery with complex fastener systems.

The Future of Screw Extraction Tools

As technology advances, screw extractors continue to evolve with improved designs and materials:

  • Ergonomic Designs: Enhancing user comfort and reducing fatigue during use.

  • Advanced Materials: Utilizing hardened steel or titanium for greater durability.

  • Smart Tools: Integrating sensors and AI for precise alignment and torque control.

Conclusion

Screw extractors are invaluable tools that simplify the removal of damaged or stubborn screws. By understanding their types, applications, and techniques, users can tackle challenging repairs with confidence. Whether you’re a professional mechanic, a DIY enthusiast, or a woodworker, mastering the use of screw extractors will undoubtedly save time and frustration, empowering you to turn obstacles into opportunities.
